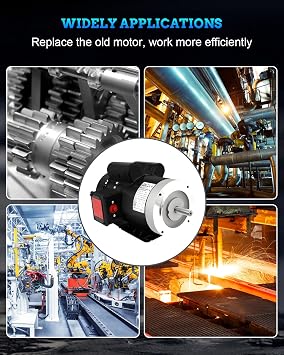

Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
genuine image
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC
High power motor can improve work efficiency and reduce energy cost.
Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8" Shaft Diameter CW/CCW 60HZ TEFC
商品＃: 115501553

Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8" Shaft Diameter CW/CCW 60HZ TEFC

商品＃: 115501553

TWD 11704

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

*All items will import from 美國

0 ratings 撰寫評論
有存貨
美國 從USA商店匯入

QTY:

庫存僅剩9件。
立即訂購並活動它 週四, 七月 16
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
High power motor can improve work efficiency and reduce energy cost.
U-Care保固：
沒有
選擇一個計劃
fast shipping

Fast
Shipping

free return

Free
Return*

secure packaging

Secure Packaging

100% original products

100% Original Products

pci-dss

PCI DSS Compliance

iso certified

ISO 27001 Certified

paypal payment
visa payment
mastercard payment
Note: Step Up Voltage Transformer required for using electronics products of 美國 store (110-120). Recommended power converters 立即購買.

What Stands Out

Versatile Power
This 2HP motor operates effectively at 115/230V, making it suitable for various applications, ensuring reliable performance wherever needed.
High Efficiency
With a 1750 RPM speed, this motor delivers high efficiency and consistent torque output, reducing energy consumption and increasing productivity.
Durable Design
The Totally Enclosed Fan Cooled (TEFC) design protects against dust and moisture, enhancing longevity and reducing maintenance needs for worry-free operation.

產品詳情

Shop Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115/230V 5/8 Shaft Diameter CW/CCW 60HZ TEFC online at a best price in Taiwan. B0D1FWL9V7
  • MOTOR INFORMATION: IP - 55, HZ - 60HZ, 20.0/10.0A, 115/230V, INS - F, Service Factor-1.15,4 Pole. Mounting dimensions of bolt holes is 3/8-16.
  • FULLY ENCLOSED FAN: Even in harsh environments, a large fan at one end cools the motor during hours of operation to reduce energy costs and operating temperatures for you to save energy.
  • ELECTRIC MOTOR FRAME TYPE: 56C frame, Shaft diameter - 5/8",Shaft length - 1.88". Rolled steel shell, safe and durable, long service life.
  • MOTOR ROTATION DIRECTION: The 1725 rpm single phase motor rotation is reversible for CW/CCW, following the provided wiring diagram for easier operation.
  • SPECIAL DESIGN: 2HP electric motor is general purpose motor that can be used used in mechanical equipment, pumps, fans, reducers, air compressors and other equipment and is CSA certified. Rolled steel housing, fast heat dissipation, compatible with keying shaft, long-term use.
Brand NameFAHKNS
Model Namegeneral electric motor
Model161315-1
ManufacturerFAHKNS
UPC840366482030
Part Number161315-1
Included Componentssingle phase motor
Speed1725 RPM
Voltage230 Volts
Horsepower2 Horsepower
Item Dimensions W x H7.95"W x 8.6"H (20.2 cm)
Item Weight19.65 Kilograms
Material TypeRolled steel shell
BrandFAHKNS

What's in the box

single phase motor

Who Should Buy?

Suitable For
  • Hobbyist Projects

    Ideal for DIY enthusiasts looking to power small equipment in workshops or garages effectively.

  • Light Industrial Use

    Suitable for light-duty applications in factories needing reliable motors for simple machines and tools.

  • Home Appliances

    A great choice for homeowners needing a motor for garage doors or small appliances like fans.

Not Suitable For
  • Heavy Machinery

    Not suitable for heavy industrial equipment requiring high torque or heavy-load capabilities.

  • Three-Phase Systems

    This single-phase motor isn't compatible with three-phase electrical systems often used in commercial settings.

  • Outdoor Usage

    Not recommended for outdoor applications unless properly housed, as it's rated TEFC but might still face moisture issues.

產品描述

有疑問？ 和我們聊天

客戶問答

  • 問題: What is the horsepower of this electric motor?

    Answer: This electric motor has a horsepower of 2HP, making it suitable for a variety of general-purpose applications that require a moderate power output. The 2HP rating indicates its capacity to handle tasks such as driving pumps, fans, and other machines in both commercial and industrial settings.
  • 問題: What is the RPM of this motor and why is it important?

    Answer: This motor operates at 1750 RPM, which is essential for achieving the desired mechanical output. The RPM (revolutions per minute) determines the speed at which the motor runs, affecting the performance of the machinery it powers. For applications needing a consistent speed, such as conveyor systems, this RPM rating ensures reliable operation without compromising efficiency.
  • 問題: Is this motor suitable for indoor use?

    Answer: Yes, this TEFC (Totally Enclosed Fan Cooled) motor is designed for indoor environments. The TEFC feature protects the motor from dust, dirt, and moisture, making it ideal for workshops, manufacturing plants, and warehouses where contaminants are a concern. It ensures longevity and reliability during extended use.
  • 問題: Can this single-phase motor operate in reverse?

    Answer: Absolutely, this motor can run both clockwise and counterclockwise due to its CW/CCW capability. This versatility is particularly beneficial in applications such as conveyors and drills where changing the direction of the motor is required for operational efficiency.
  • 問題: What voltage is required to operate this electric motor?

    Answer: This motor operates on a voltage range of 115/230V. Its dual voltage compatibility allows it to be used in various settings and with different power sources, making it flexible for residential and industrial applications alike. Users can set it to match their available voltage supply for optimal functionality.
  • 問題: What is the shaft diameter of this electric motor?

    Answer: The shaft diameter for this motor is 5/8 inches. This measurement is crucial as it determines the compatibility with various components, such as pulleys and gears. Ensure that any attachments you plan to use are designed for a 5/8 inch shaft size to ensure secure and efficient operation.
  • 問題: What kind of cooling system does this motor use?

    Answer: This motor features a Totally Enclosed Fan Cooled (TEFC) design, which allows it to maintain operating temperatures even under heavy load conditions. The fan circulates air within the enclosure to dissipate heat, making it optimal for continuous-duty cycles. It's ideal for environments where heat accumulation needs to be minimized.
  • 問題: In which applications can I use this general-purpose motor?

    Answer: This general-purpose electric motor is versatile and can be used in various applications, including HVAC systems, water pumps, conveyors, and home appliances. Its robust design allows it to function effectively in diverse environments, making it a popular choice for both industrial and residential uses.
  • 問題: What is the efficiency rating of this electric motor?

    Answer: While specific efficiency ratings can vary, 2HP motors like this one are typically designed to operate efficiently at load conditions. High efficiency is important as it translates to lower energy consumption and operational costs, especially in applications where the motor runs for extended periods.
  • 問題: Where can I buy this electric motor in Taiwan?

    Answer: You can buy the Electric Motor 2HP, General Purpose Motor, Single Phase Motor 1750RPM 115230V 58 Shaft Diameter CWCCW 60HZ TEFC on Ubuy. Ubuy is a reliable online shopping platform that offers a wide selection of products, including quality electric motors, ensuring you receive your item with prompt delivery.

FAHKNS Fan Motors Editorial Review

未找到編輯評論

Customer Reviews & Ratings

1.0
1 客戶評價
  • 5 星
    0%
  • 4 星
    0%
  • 3 星
    0%
  • 2 星
    0%
  • 1 星
    100%

評論這個產品

和其他客戶分享您的想法

優點

  • Easy to use
  • Lightweight design
  • Attractive appearance

Product Price History

重要資訊

  • 限制：對於國際運輸的產品，請注意任何製造商保修可能無效；製造商服務選項可能不可用；產品手冊、說明和安全警告可能不是目的地國家的語言；產品（及隨附材料）的設計可能不符合目的地國家的標準、規範和標籤要求；並且產品可能不符合目的地國家的電壓和其他電氣標準（如果適用，需要使用適配器或轉換器）。收件人有責任確保產品可以合法進口到目的地國家。當從Ubuy或其關聯公司訂購時，收件人是記錄在案的進口人，並且必須遵守目的地國家的所有法律和法規。
  • 由於Ubuy是一個全球搜索引擎，因此並非Ubuy上列出的所有產品都在出售。產品受出口/貿易法規的約束。

TWD 11704

立即訂購並活動它 週四, 七月 16

QTY:

庫存僅剩9件。
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
Fastest cross-border delivery

特色和優勢

  • 2HP General Electric Motor enhances work efficiency.
  • Energy-saving design helps reduce overhead costs.
  • Durable heavy rolled steel shell ensures longevity.
  • 1725 RPM for optimal performance in various applications.
  • Fully enclosed fan cools motor for efficient operation.
  • Available for a wide range of general-purpose uses.
