The X306 UPS shield is the ideal uninterruptible power supply solution for your Raspberry Pi Zero W/2W.
Geekworm X306 V1.5 5V UPS Expansion Board for Raspberry Pi Zero 2W | Max 5.1V 4A Backup Power, Not Include Raspberry Pi and Battery
商品＃: 67292975

Geekworm X306 V1.5 5V UPS Expansion Board for Raspberry Pi Zero 2W | Max 5.1V 4A Backup Power, Not Include Raspberry Pi and Battery

商品＃: 67292975

TWD 1328

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

*All items will import from 美國

0 ratings 撰寫評論

50+ bought

有存貨
美國 從USA商店匯入
立即訂購並活動它 週四, 七月 16
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
The X306 UPS shield is the ideal uninterruptible power supply solution for your Raspberry Pi Zero W/2W.
U-Care保固：
沒有
選擇一個計劃
fast shipping

Fast
Shipping

free return

Free
Return*

secure packaging

Secure Packaging

100% original products

100% Original Products

pci-dss

PCI DSS Compliance

iso certified

ISO 27001 Certified

paypal payment
visa payment
mastercard payment

What Stands Out

Dedicated Power Solution
Provides an uninterrupted power supply for Raspberry Pi Zero 2W, ensuring stable operation during outages or power fluctuations.
Compact Design
Engineered to fit seamlessly with the Raspberry Pi Zero 2W, this board occupies minimal space while delivering maximum functionality.
Easy Installation
Designed for quick and hassle-free integration, allowing users to enhance their Raspberry Pi projects without technical difficulties.

產品詳情

Get the Geekworm Raspberry Pi Zero 2W UPS Expansion Board X306 & USB HUB for uninterrupted power supply. Compatible with Raspberry Pi Zero 2W. Shop now on Ubuy Taiwan.

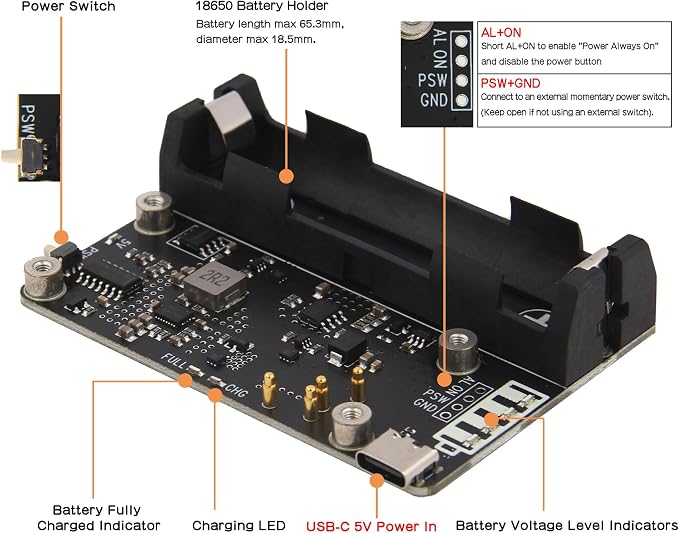

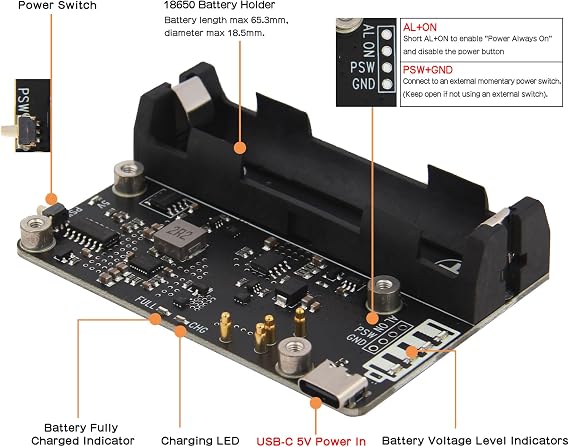

  • Enhanced Battery Holder: X306 V1.5 (Oct 2025) upgrades the battery holder for smoother installation, removal, and long-lasting reliability (battery is not included)
  • Compatibility: Compatible with Raspberry Pi Zero 2 W ONLY, NOT support Raspberry Pi Zero/Zero W; Model: X306 V1.5; Matching Case: X306-C1 is the compatible case for X306 V1.3 and V1.5
  • One-Cell UPS HAT: Ideal Uninterruptible Power Supply (UPS) solution for Raspberry Pi Zero 2W, Max 5.1V 4000mA Power Backup with single cell battery holder(battery is not included)
  • How to Power: Power via USB Type-C 5V Power In port of X306; 5Vdc +/-5% , ≥3A; Use Geekworm UL listed 20W 5V 4A USB Type-C power adapter
  • Cooling Solution: Recommend to use with C296 aluminum heatsink for Raspberry Pi Zero 2 W
  • Packing List: 1 x X306 Expansion Board; 4 x M2.5x5mm screws(Raspberry Pi and Battery NOT Included)
Voltage5.0
Amperage3 Amps
Form FactorCompact
Input Voltage5 Volts (DC)
Maximum Power20.4 Watts
Output Current4000 Milliamps
Output Voltage5.1 Volts (DC)
Power Plug TypeNo Plug
Connector TypeUSB Type-C
Number of Outlets3
Output Wattage20.4 Watts
Wattage15 watts
Frequency Range50/60 Hz (± 3 Hz)
Runtime8 hours
Item Weight39 Grams
Item Dimensions3.03 x 2.56 x 0.39 inches (7.7 x 6.5 x 1 cm)
Battery Cell TypeLithium Ion
Enclosure MaterialPlastic
ColorBlack
BrandGeekworm
Model NumberTB-2022-56
ManufacturerGeekworm
Mfr Part NumberTB-2022-56
Unit Count1.0 Count
Battery Cell CompositionLithium Ion
MaterialPlastic

危險品

為避免危險品清關過程的延誤，貨物應在我們的倉庫設施中打開，以檢查危險成分的嚴重程度。 Please see the list of Dangerous goods here.

Who Should Buy?

Suitable For
  • Hobbyist Developers

    Ideal for developers creating projects with Raspberry Pi Zero 2W needing uninterrupted power supply for stability.

  • IoT Applications

    Perfect for IoT devices requiring backup power to maintain connectivity during outages and ensure data integrity.

  • Portable Projects

    Great for users building portable Raspberry Pi setups that need reliable battery power for mobility and versatility.

Not Suitable For
  • Casual Users

    Not suitable for casual users not familiar with Raspberry Pi and electronics who might find installation complex.

  • Budget-Conscious Projects

    May not be ideal for users with tight budgets as additional components like battery are required.

  • Fixed Installations

    Not recommended for fixed installations where a UPS feature is unnecessary, such as standard desktop setups.

產品描述

有疑問？ 和我們聊天

客戶問答

  • 問題: What is the purpose of the Geekworm X306 V1.3 UPS Expansion Board?

    Answer: The Geekworm X306 V1.3 UPS Expansion Board provides a reliable uninterruptible power supply solution for the Raspberry Pi Zero 2W. By connecting it, users can run their Pi projects without the concern of power outages affecting performance. This expansion board is particularly useful for IoT applications, remote monitoring setups, or portable Raspberry Pi projects where maintaining a continuous power supply is crucial.
  • 問題: How do I connect the Geekworm X306 V1.3 UPS Expansion Board to my Raspberry Pi Zero 2W?

    Answer: Connecting the Geekworm X306 V1.3 UPS Expansion Board is straightforward. You simply align the GPIO pins on the board with the corresponding pins on the Raspberry Pi Zero 2W and gently press down until secure. Make sure to follow the provided instructions carefully to avoid damaging the components. This setup is essential for powering projects that require stable operation during fluctuations in power supply.
  • 問題: Can I use the UPS Expansion Board with other Raspberry Pi models?

    Answer: The Geekworm X306 V1.3 UPS Expansion Board is specifically designed for the Raspberry Pi Zero 2W. While it may have similar interfaces with other Raspberry Pi models, for optimal compatibility and performance, it is recommended to use it exclusively with the Zero 2W. If you're using other Pi versions, consider looking for UPS solutions tailored to those specific models.
  • 問題: What type of battery is compatible with the Geekworm X306 V1.3 UPS Expansion Board?

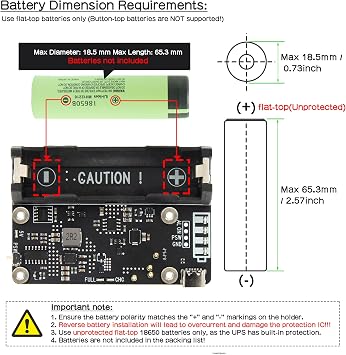

    Answer: The Geekworm X306 V1.3 UPS Expansion Board accepts a lithium battery, particularly those within the 3.7V range, such as 18650 rechargeable batteries. Ensure to use a quality battery to ensure safety and longevity. This compatibility makes the board ideal for portable applications, allowing users to build battery-powered projects that maintain performance even when disconnected from a power source.
  • 問題: Is it possible to monitor the battery status using this board?

    Answer: Yes, the Geekworm X306 V1.3 UPS Expansion Board features built-in monitoring capabilities that allow users to check the battery level and status of the UPS. This feature is particularly beneficial for developers and hobbyists who require insight into their power supply while conducting long-term experiments or deployed projects. Monitoring can help in proactive battery management and preventing unexpected power failures.
  • 問題: What applications are ideal for the Geekworm X306 V1.3 UPS Expansion Board?

    Answer: The Geekworm X306 V1.3 UPS Expansion Board is perfect for projects that require continuous power, such as remote surveillance systems, portable Raspberry Pi applications, or home automation projects. For instance, if you are creating an environmental monitoring station, this UPS ensures that power interruptions will not disrupt data collection or device performance.
  • 問題: Does the board come with any pre-installed software for ease of use?

    Answer: The Geekworm X306 V1.3 UPS Expansion Board does not come with pre-installed software. It is designed to be integrated into your existing Raspberry Pi projects. Users will need to configure their system using the Raspberry Pi's operating system and any additional software necessary for their specific applications. This approach offers flexibility, allowing users to customize their setups according to their needs.
  • 問題: Can I charge the battery while using the board?

    Answer: Absolutely! The Geekworm X306 V1.3 UPS Expansion Board is designed to allow simultaneous charging and usage of the connected lithium battery. This feature ensures that your Raspberry Pi Zero 2W remains powered even while the battery is being charged, making it ideal for projects that require continuous uptime. This setup is particularly beneficial for remote deployments where access to power sources can be limited.
  • 問題: What safety features are integrated into the Geekworm X306 V1.3 UPS Expansion Board?

    Answer: The Geekworm X306 V1.3 UPS Expansion Board includes multiple safety features such as over-current, over-voltage, and short-circuit protection. These features are critical in preventing battery damage and ensuring the safe operation of your Raspberry Pi projects. Overall, these safety measures enhance your project's reliability and protect both the hardware and user from potential hazards.
  • 問題: Where can I buy the Geekworm X306 V1.3 UPS Expansion Board?

    Answer: You can buy the Geekworm X306 V1.3 UPS Expansion Board for Raspberry Pi Zero 2W on Ubuy. They offer a reliable platform for purchasing tech components, ensuring you get the product you need for your Raspberry Pi projects. Ubuy provides a seamless shopping experience along with various brands and electronic accessories.

Geekworm Single Board Computers TB-2022-56 Editorial Review

  • ubuy Taiwan
  • ubuy Taiwan
  • ubuy Taiwan
  • ubuy Taiwan
  • ubuy Taiwan
  • ubuy Taiwan

The Geekworm Raspberry Pi Zero 2 W 18650 UPS Expansion Board X306 & USB HUB is an expansion board for Raspberry Pi Zero 2W/Zero W that enables them to run from a battery and provides a USB hub for connecting other devices. The board can be powered by a 18650 battery and can also charge the battery when the Pi is connected to an external power supply. The output for each USB port is 5V, with all ports sharing 4A, not limited to 500mA. There is no case available for the X306 UPS, and while the jumper cap is included, the 2-pin power switch is not included and needs to be purchased separately. Users have reported success using both high-quality and generic 18650 batteries, with run times of 5-6 hours and 2 hours respectively. It is possible to modify the board to use 21700 batteries, but caution must be exercised to avoid potential damage to the battery holder.

Customer Reviews & Ratings

4.4
58 客戶評價
  • 5 星
    77%
  • 4 星
    7%
  • 3 星
    4%
  • 2 星
    4%
  • 1 星
    8%

評論這個產品

和其他客戶分享您的想法

優點

  • Enables Raspberry Pi Zero 2W/Zero W to be powered by a battery
  • Provides a USB hub for connecting other devices
  • Can charge the battery when the Pi is connected to an external power supply
  • Users report success with both high-quality and generic 18650 batteries

缺點

  • No compatible case for the X306 UPS

Platform Trust & Buyer Confidence

trustpilot logo
4.3/5 9,000 + reviews
Read reviews
MT
Mohd
Verified buyer

“The product received very good packaging & safe…Thank You”

16 June 2026 · via Trustpilot
SJ
Shawati
Verified buyer

“Accurate delivery timing given”

16 June 2026 · via Trustpilot
YB
Youcef
Verified buyer

“Not madly expensive like I thought, and much quicker than promised.”

15 June 2026 · via Trustpilot
LM
Leila
Verified buyer

“Never dealt with Ubuy before, but everything worked out great. Seamless cross border purchasing and shipping. Thanks!”

6/7/2026 · via Trustpilot
KA
Kwame
Verified buyer

“The process was smooth, with clear communication and timelines. This was my 1st purchase and I am really impressed. I will definitely be coming back.”

12 June 2026 · via Trustpilot
安全結帳 Global Delivery Easy Returns Genuine Products

Product Price History

重要資訊

  • 限制：對於國際運輸的產品，請注意任何製造商保修可能無效；製造商服務選項可能不可用；產品手冊、說明和安全警告可能不是目的地國家的語言；產品（及隨附材料）的設計可能不符合目的地國家的標準、規範和標籤要求；並且產品可能不符合目的地國家的電壓和其他電氣標準（如果適用，需要使用適配器或轉換器）。收件人有責任確保產品可以合法進口到目的地國家。當從Ubuy或其關聯公司訂購時，收件人是記錄在案的進口人，並且必須遵守目的地國家的所有法律和法規。
  • 由於Ubuy是一個全球搜索引擎，因此並非Ubuy上列出的所有產品都在出售。產品受出口/貿易法規的約束。

TWD 1328

立即訂購並活動它 週四, 七月 16

QTY:

Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
Fastest cross-border delivery

特色和優勢

  • Designed specifically for Raspberry Pi Zero W/2W.
  • Includes a one-cell 18650 UPS HAT for reliable power backup.
  • Equipped with 3 standard USB 2.0 ports for connecting external devices.
  • Supports max output of 5.1V and 4000mA.
  • Power via USB Type-C, requiring ≥3A power supply.
  • User-friendly with included installation guide and manual.
